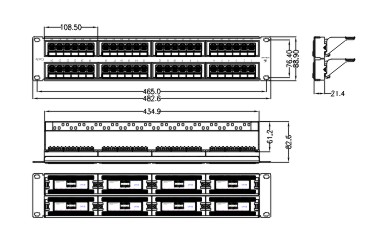

UTP Cat.5e Patch Panel 48Port dual use IDC with Ba
Main Description of The Product:
1. 48 ports patch panel, Cat.5e UTP type. The structure of each port
of this patch panel is same which makes sure that the performance of
each port is consistent.
2. The cable manager is combined in this patch panel. All kinds of
cables with different dimensions can be fixed on the patch panet.
3. According to the standard of ISO/IEC 11801:2000 CLASS D and
ANSI/TIA/EIA/568B Cat.5e standard. T568A punching sequence and T568B
punching sequence are both compatible. Fitting for horizontal
distribution in the equipments room and equipments connecting.
4. Connecting: FCC port for Cat.5e UTP patch cord and IDC for horizontal distribution cables.
5. Compatibility: Compatible for UTP Cat.5e general cable distribution systems.
6. IDC: 110 type or dual use type for your choice.
1. Entire high-carbon steel outer frame, with plastic powder cladding.
2. RJ45 jack frame material: PBT, golden plated phosphor bronze pins,
Shielding shell of the RJ45 jack: Brass housing with nicket-plated; IDC
clip: Tinned phosphor bronze pins.
3. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750 times.
4. Cabling sequence: T568A & B.
5. Punching tool: Standard 110 tool for 110 IDC, Standard 110 tool or LSA tool for dual IDC.
6. Testing condition of transmitting capability: 100MHz
